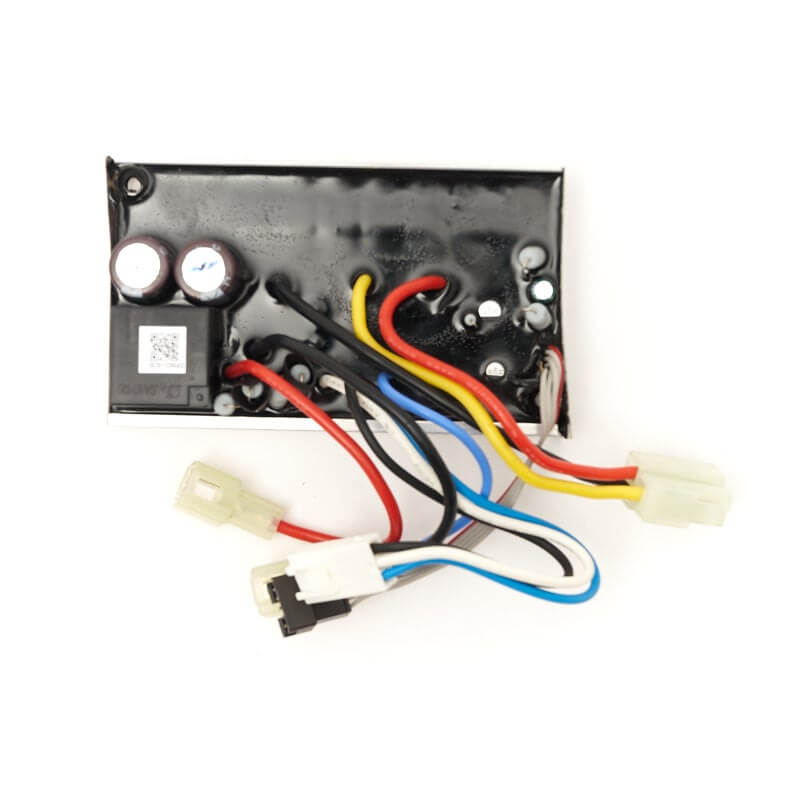

80V Power Control Board Kit

SKU: R0200177-00
Shipping calculated at checkout.

SHOP WITH CONFIDENCE

Service Centre Required

Compatible With :

Description

Service Centre Required

Replacement power control board for select 80V Greenworks tools. Compatible with product number 2600402 and 2601302 manufactured after 2018.

Specifications
  • Voltage
    80V

Explore More
  • 5 stars: 1 (33%)
  • 4 stars: 0 (0%)
  • 3 stars: 2 (67%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
T
Tony Abbott
Replacement PCB Wiring for Greenworks 80V Snow Shovel 2600402

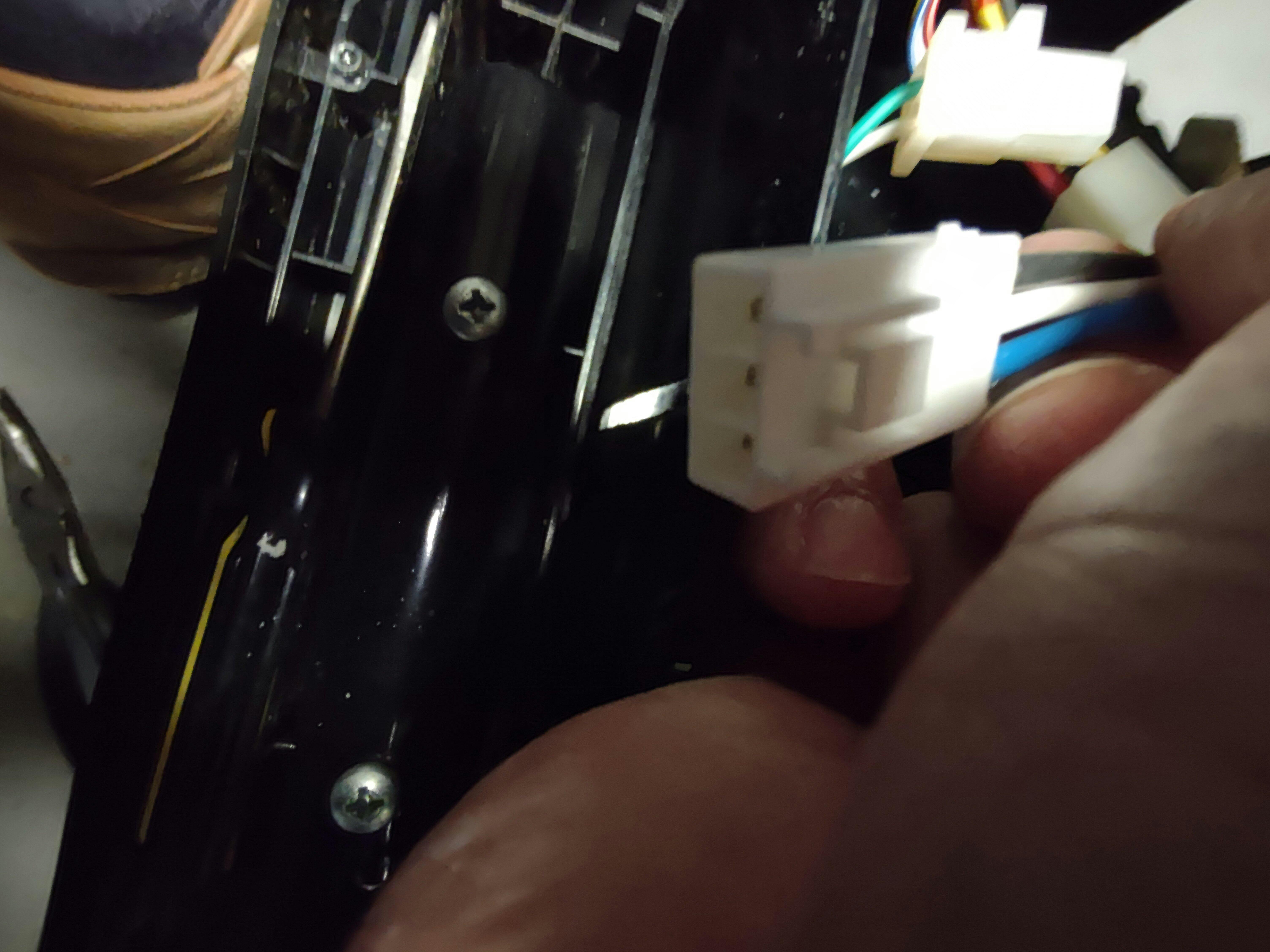

Can you provide a wiring schematic for GW 80V PCB for 2600402, R0200177-00, replacement for GRN-362011205AD? The replacement part has one more wire than the original PCB that I am removing. In the attached photo, the black wire is new. The original part only had the white and blue wires, which connected to 2 wires from the starter button. What does the black wire get connected to?

Tony Abbott review photo

Hi Tony. Thank you for contacting us. A dedicated team member has been assigned to ensure a timely resolution and to address your concerns directly. Please check your inbox, including your junk or spam folder, for further correspondence. We appreciate your patience and understanding as we continue to improve our service. Should you require any new troubleshooting, warranty assistance, questions, or other concerns, please do not hesitate to contact us directly via chat or call 1-888-909-6757 (1-888-90WORKS). Thank you for choosing Greenworks Tools!

E
Edwin Davis
The 80V PCB for 2600402, R0200177-00, Replacement for GRN-362011205AD

Where can I get the schematics for the R0200177-00 pcb? This replacement is wired differently from the original pcb which came with the machine.

Hello Edwin, thank you for your feedback.
Schematics for internal components such as control boards are not available for distribution. For questions related to wiring, compatibility, or installation, we recommend having the unit inspected by an authorized service center to ensure proper setup and safe operation.
Our Customer Support team can help locate the nearest service provider and guide you on next steps. Please contact us at 1-888-909-6757, or through Live Chat for assistance.

B
Brandon
How do I buy this?

I want to buy it from your website but there is no price or purchase buttons.
