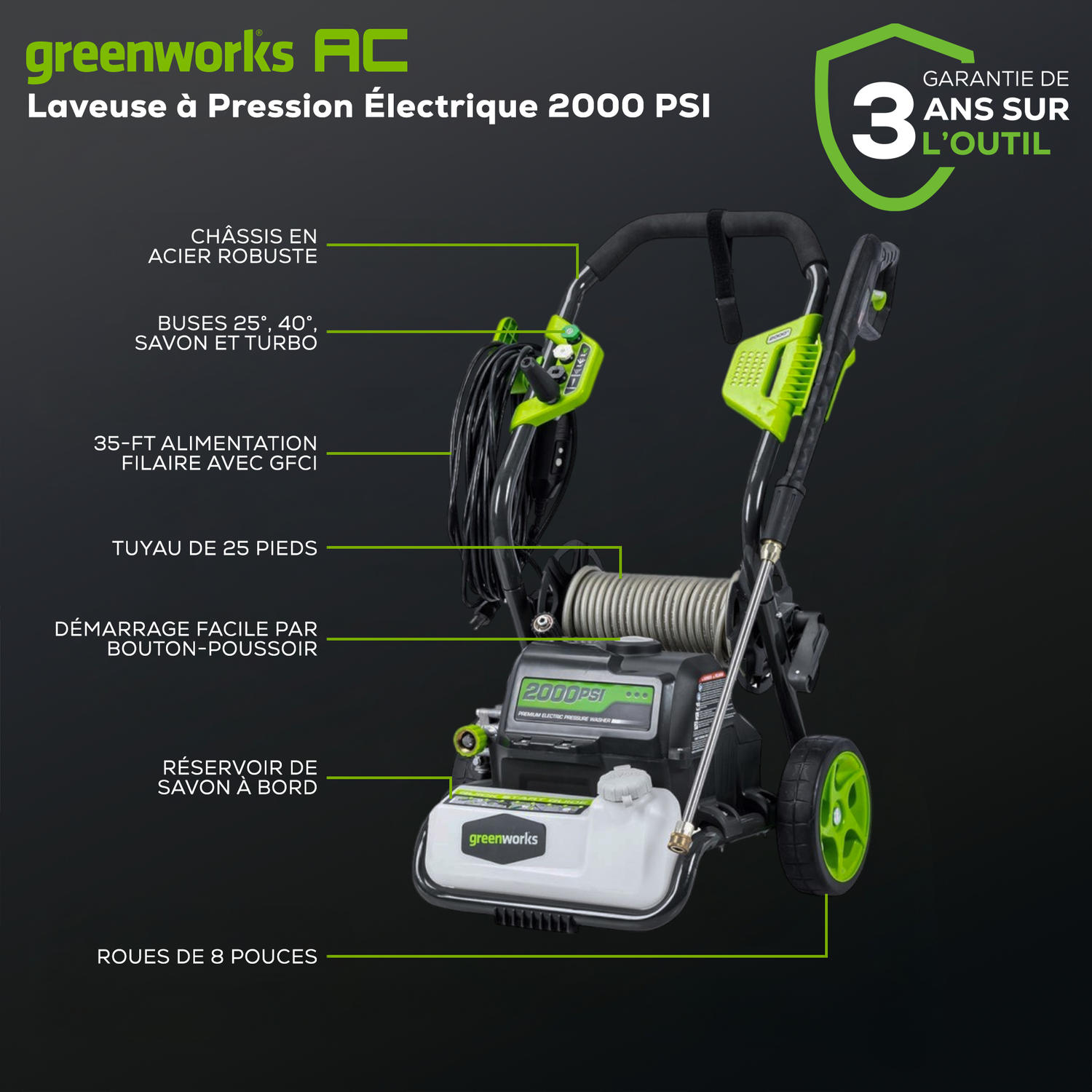

Principales Caractéristiques:

• Réservoir de savon embarqué
• Embout pour savon
• Buse Turbo
• Moteur sans balai - Un moteur sans balai hautement efficace fournit un couple accru, un fonctionnement silencieux et une durée de vie plus longue.
• Longueur du tuyau haute pression.

Compatible Avec:

Water Outlet Connector

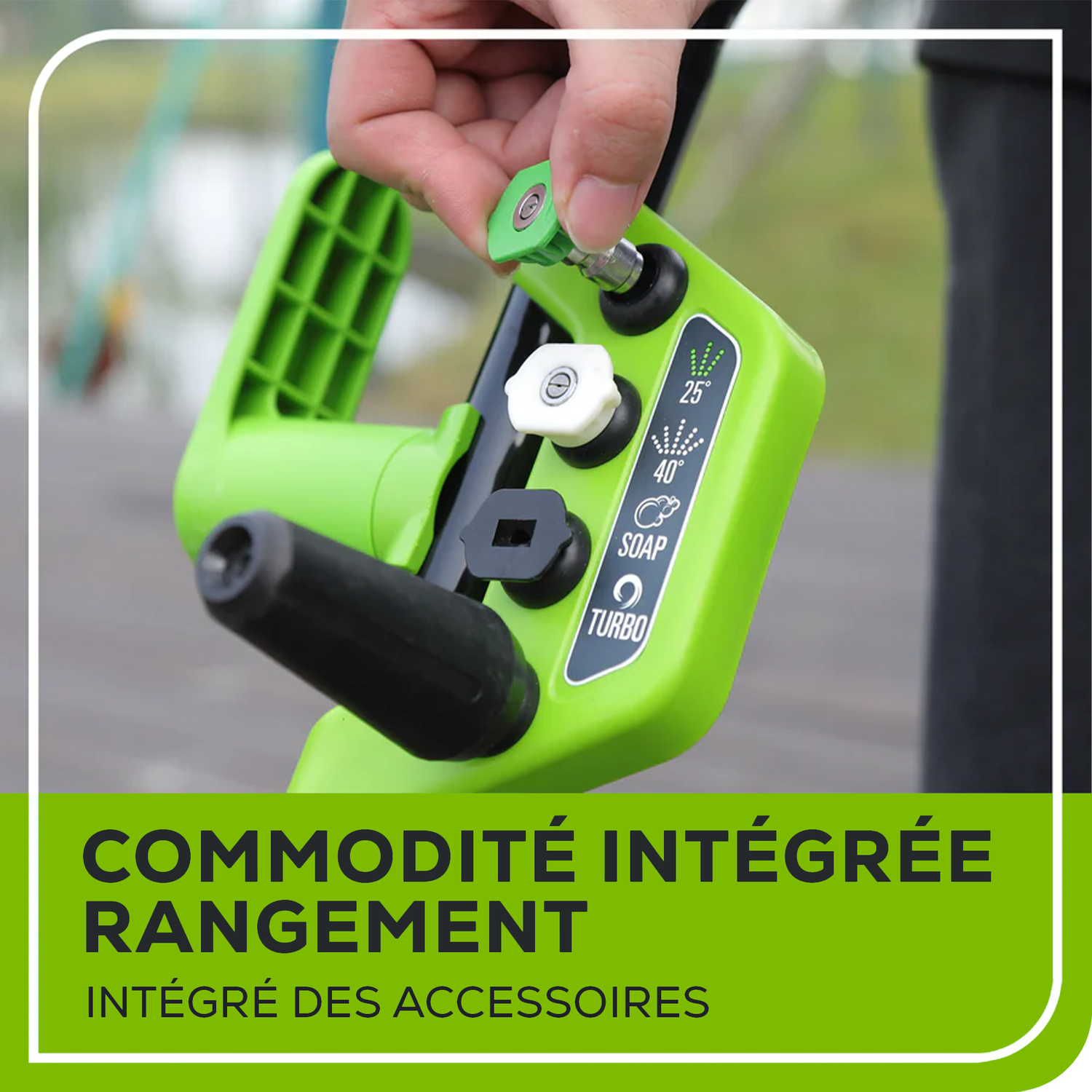

Spray Tip Panel



Screw M6X35



Hose Reel Assembly



Cord Arm Basement



Washer for Wheel



Soap Tank



Cord Arm



Water Inlet Connector Assembly



Detergent Hose



Gun Assembly



Nozzle Cleaning Tool



Plastic Turbo Nozzle



Washer



Power Cord Assembly



In-Line Ground-Fault Circuit Interrupter



Spring Button



O-Ring



Screw ST4x14



GW Pressure Plate



Motor



U Pin



Water Inlet Connector Assembly



M6 Screw



M6 Lock Nut



Soap Tank Cap



Suction Hose



8" Wheel



Axle Bolt



Power Cord Clamp



Self-Tapping Screw



Gun Handle Assembly



Gun Handle Assembly



Spray Gun for 2000PSI+ Pressure Washers



Greenworks Metal Gun



Metal Wand for 2000PSI+ Pressure Washers



Metal Wand for 2000PSI+ Pressure Washers



Metal Wand for 2000PSI+ Pressure Washers



HP Hose Assembly



High Pressure Hose



25' Hyper Flex High Pressure Hose



Switch Knob



3300 PSI Brass Turbo Nozzle

Caractéristiques:

Manuels

• 5100002CA - 2000PSI Pressure Washer ENG Manual
• 5100002CA - 2000PSI Pressure Washer FR Manual
• 5100002CA - 2000PSI Pressure Washer ENG QSG-2
• 5100002CA - 2000PSI Pressure Washer FR QSG

Comprend:

What soap should I use with my pressure washer?

We only recommend using a designated pressure washer soap. You can use any preferred brand of pressure washer soap, if it does not contain any harsh chemicals such as bleach, alkaline or ammonia. Be sure to follow the directions on the pressure washer soap for whether or not it needs to be diluted; soap should be a watery consistency.

Does my water source have to be of a certain PSI to run the unit properly?

Yes, the ideal input pressure is 60 PSI. However, the unit tolerates between 45-75PSI. If the inlet pressure is below 45 PSI, it will lead to a pressure drop and the machine will not pressurize properly. This often causes the unit to vibrate and sputter. Any higher than 75PSI unit may receive internal damage from over pressure, breaching seals, triggering the thermal valve etc. If the unit does not have the correct PSI the unit will not run correctly, and the motor can be damaged.

Can I switch between applying soap and rinsing?

Yes, you can! For units with an onboard soap tank: Soap can only be applied with the black soap nozzle, simply switch it out for the appropriate nozzle that you require for rinsing. Allow a few seconds for the soap suds to clear from the line, and then you will have clean water. For units that use a soap bottle: To rinse, you will have to remove the soap bottle and reattach the wand with the appropriate nozzle that you require for rinsing.

How do I winterize my pressure washer?

The optimum procedure advises using a pressure washer pump saver that can be purchased at most hardware stores. Please see the optimum winterizing procedure below. • Disconnect all water connections (garden hose). • Turn on the machine for a few seconds, until the remaining water in the pump exits. Turn off immediately. • Use a pressure washer pump saver - follow instructions provided on pump saver • Roll up electrical cord and hose neatly, making sure there are no kinks. Ideally, we advise storing the machine and accessories in a room that does not reach freezing temperatures. Do not store near the furnace or other sources of heat as it may dry out the pump seals.

Can I use hot water with your pressure washers?

We offer cold water pressure washers only; the maximum inlet water temperature should not exceed 104 °F (40 °C).

What size are the threaded fittings on the pressure washer?

All threaded connections on our pressure washers are an M22 14mm fitting.

What size are the nozzles?

Our pressure washers use ¼” quick connect nozzles.

My pressure washer will not start, or I have started the pressure washer, but it keeps shutting off, pulsating or does not reach high pressure. What’s wrong?

There are a few factors that could cause these reactions such as excess air in the pump or a clogged/faulty nozzle. See all troubleshooting options below. Cleaning Obstructed Nozzles Over time with use, the pressure washer nozzles may collect dust, dirt, and calcium build-up which as a result cause the pressure washer to malfunction while in use. To clean nozzles soak them in a 50/50 mixture of white vinegar and warm water for a minimum of 15 minutes. Then proceed to poke your nozzle cleaning tool or paper clip through the end of the nozzle hole to poke out any debris. After you have done this, rinse them with warm water. Purge Air from Pressure Washer Set up the unit as per usual and ensure you are not using an extension cord. Remove any nozzle that may be connected at the end of the wand. Make sure that you have a green light on the GFCI on the power cord. Turn your garden hose on but leave the pressure washer turned OFF. With the pressure washer turned off, squeeze on the trigger for about 3 minutes – allowing the water to run through the unit at no pressure. In doing so, you are bleeding the unit out of any air that may be stuck in the pump. After 3 minutes, turn the unit on. Reinstall one of your clean nozzles and continue using the unit. At this stage, if the unit shuts off when a nozzle is installed be sure to try all nozzles. A faulty nozzle may cause the unit to shut down. Additional components to check: • Ensure a nozzle is connected. Be sure to try all nozzles. • Ensure that the water source is fully opened and is at least 60PSI (Refer to: Does my water source have to be of a certain PSI to run the unit properly?) • Check that there is at least 10' of unrestricted garden hose between the hose connection and the unit, any kinks will prevent the flow of water from going into the unit and prevent proper pressure. • For best results, use a 1” (25 mm) or 5/8” (16 mm) garden hose. • Check that the water inlet is not clogged. Disconnect the garden hose, remove the filter and rinse with warm water. • That you are using a working outlet. Be sure to try more than one!

Can I use a longer high-pressure hose?

While you may use a longer high-pressure hose, please note that the pressure will drop.

Do you offer extension wands?

Unfortunately, we do not offer extension wands. While you may find something compatible with another brand, know that the pressure could be affected.

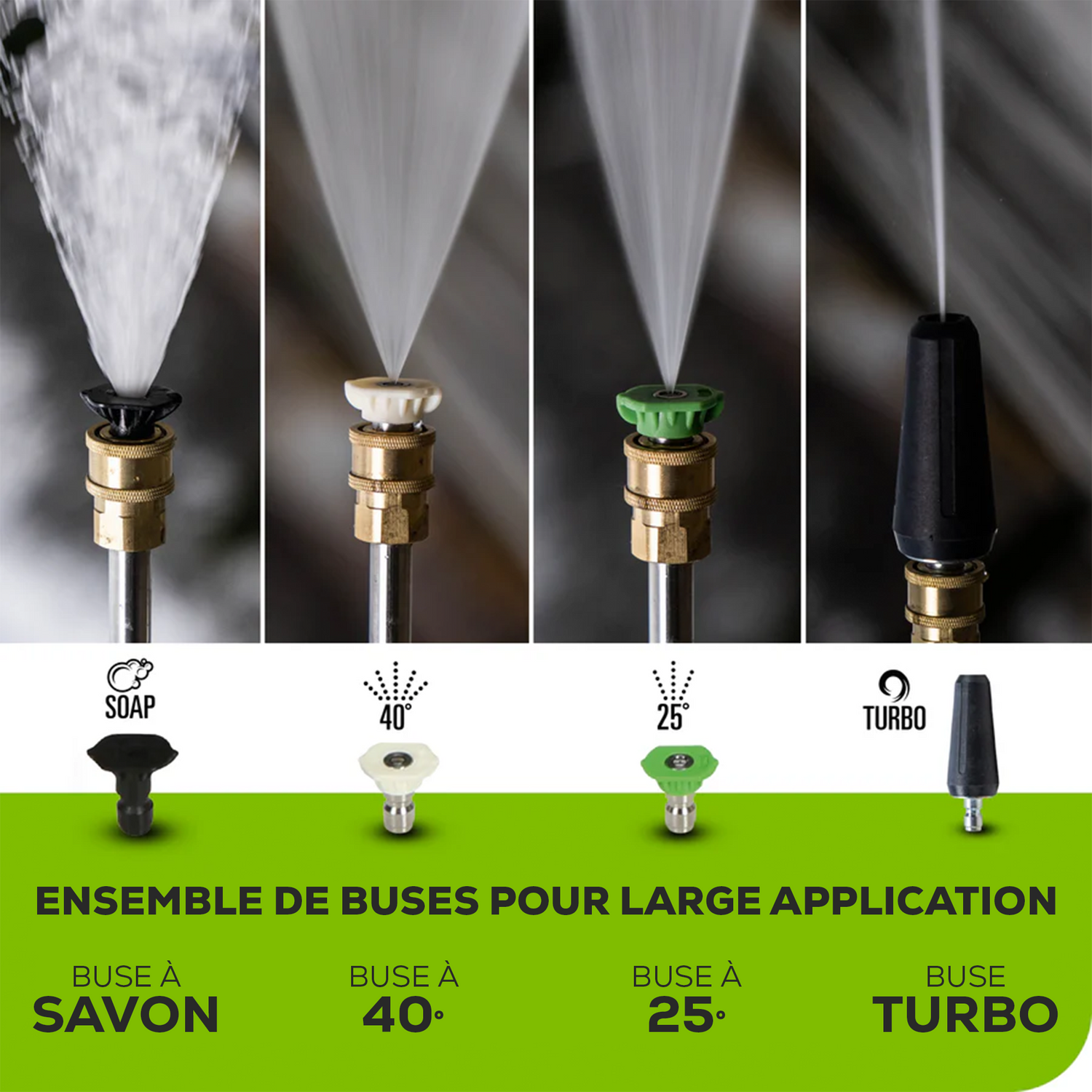

What uses are the different nozzles ideal for?

0° - Red nozzle: This nozzle is typically used for removing tough stains like rust and debris from concrete and metal. You can also use it for removing caked on mud from heavy construction, farm, or lawn equipment. Do not use this nozzle on wood or home siding or for washing a car because this stream is very strong and powerful and can damage a soft surface. 15° – Yellow nozzle: The yellow pressure washer tip provides high versatility with its 15-degree angle tip. Referred to as the washing tip, because it provides adequate pressure to remove dirt from surfaces but is designed to not damage many surfaces. This pressure washer tip is designed for “sweeping” foliage or debris given its wide angle. This tip is versatile due to its wide area of cleaning and strong pressure application. 25° – Green nozzle: The green colored, 25-degree nozzle is best used to sweep away dirt and mud. Use it to sweep away leaves from decks, driveways, and sidewalks. It can also be used for removing light mildew stains and removing algae and bacteria build up from pools. 40° – White nozzle: The white 40-degree tip, referred to as the “fan” tip creates the widest area of cleaning with relatively low pressure. This pressure washer tip is best used for light or delicate cleaning applications. It is recommended for light cleaning on wood decks and other soft or delicate surfaces. 75° Soap – Black nozzle: The black colored nozzle is a low-pressure detergent nozzle. You use this when applying your preferred detergent for your cleaning projects. Turbo Nozzle: The nozzle rotates in a zero-to-15-degree spray pattern in a circular motion to break down tough dirt and grime. The spray pattern can cover area of 4 to 8 inches wide, depending on a distance between the tip and the surface being cleaned.
