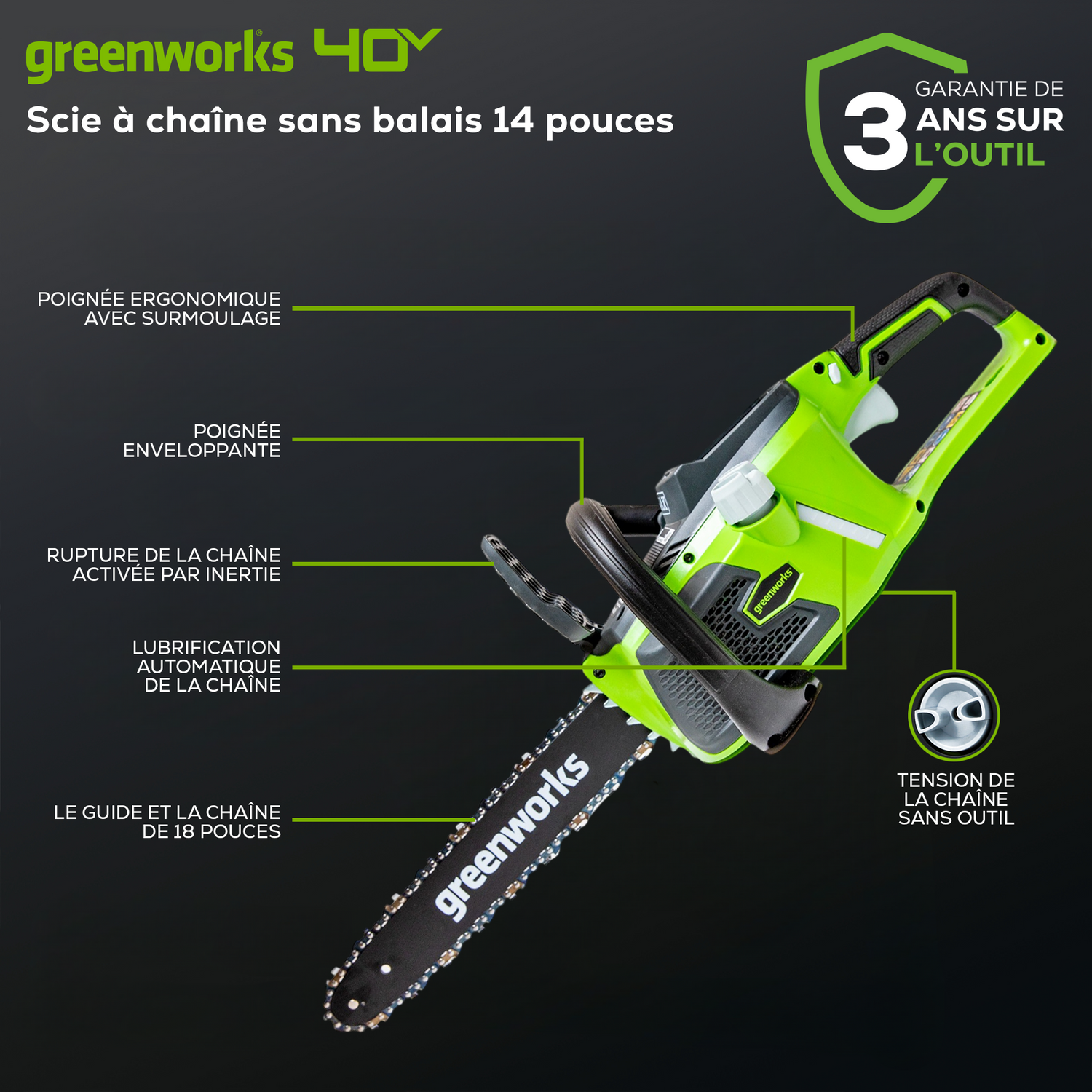

Principales Caractéristiques:

• La technologie sans balai DigiPro™ - Fournit 2 fois plus de couple, des temps de fonctionnement plus longs, un fonctionnement silencieux et une durée de vie du moteur prolongée.

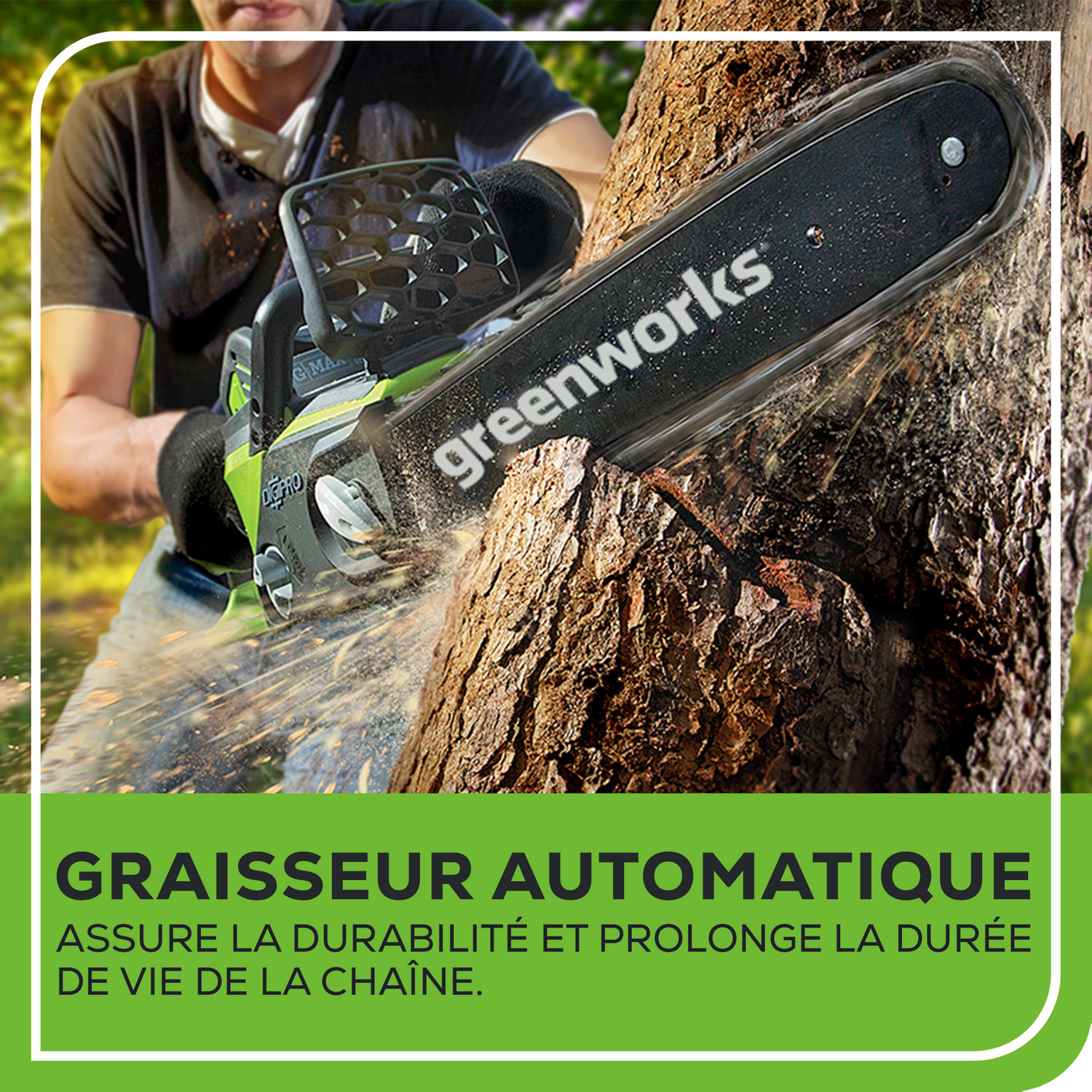

• Système de lubrification automatique - Assure la durabilité et prolonge la vie de la chaîne.

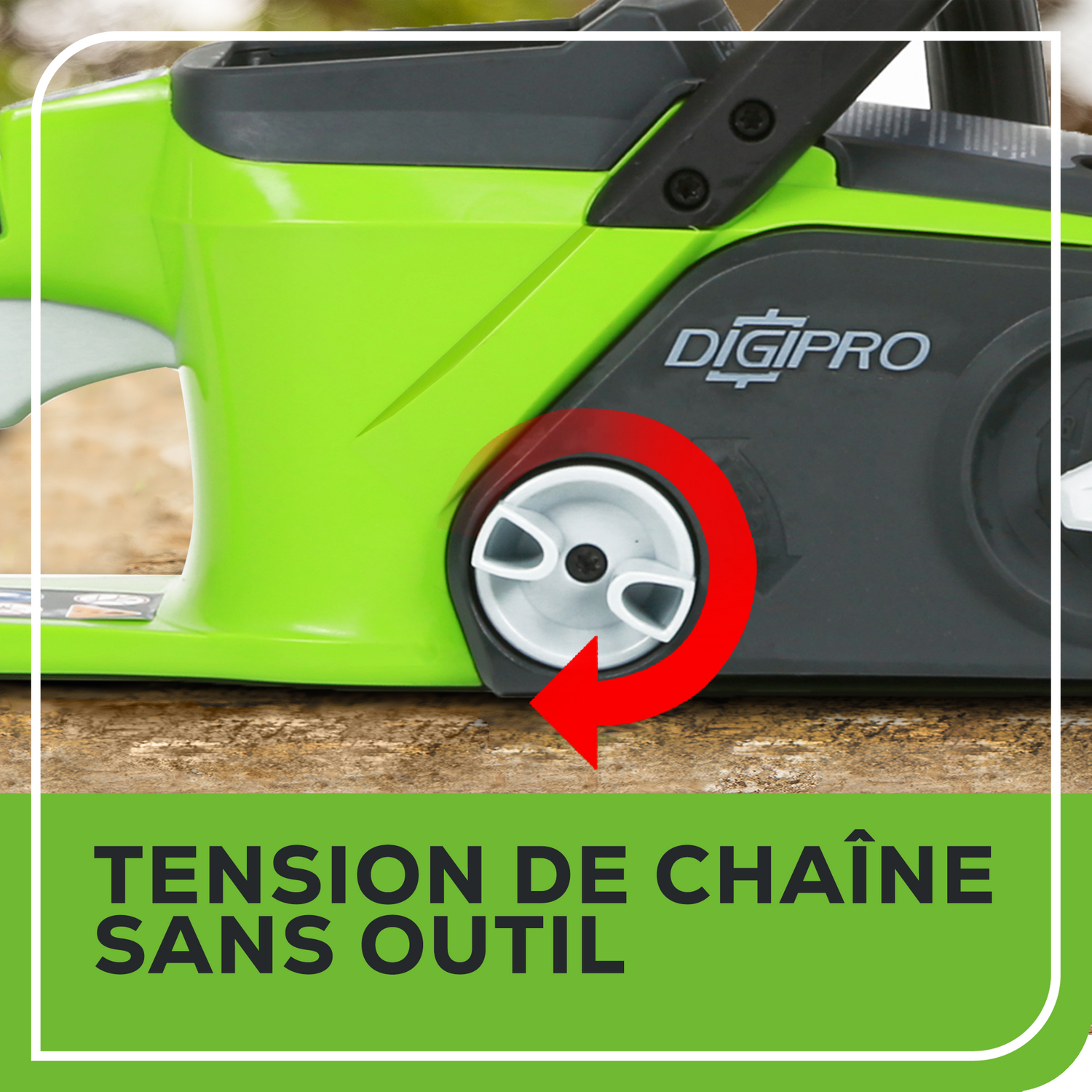

• Réglage de la tension de chaîne sans outil. - Pour des ajustements rapides afin que vous puissiez retourner à la tâche en cours.
• Léger - Pour plus de confort, de contrôle et moins de fatigue - 20 % plus léger que les modèles comparables alimentés au gaz.
• Pointes d'abattage en acier.

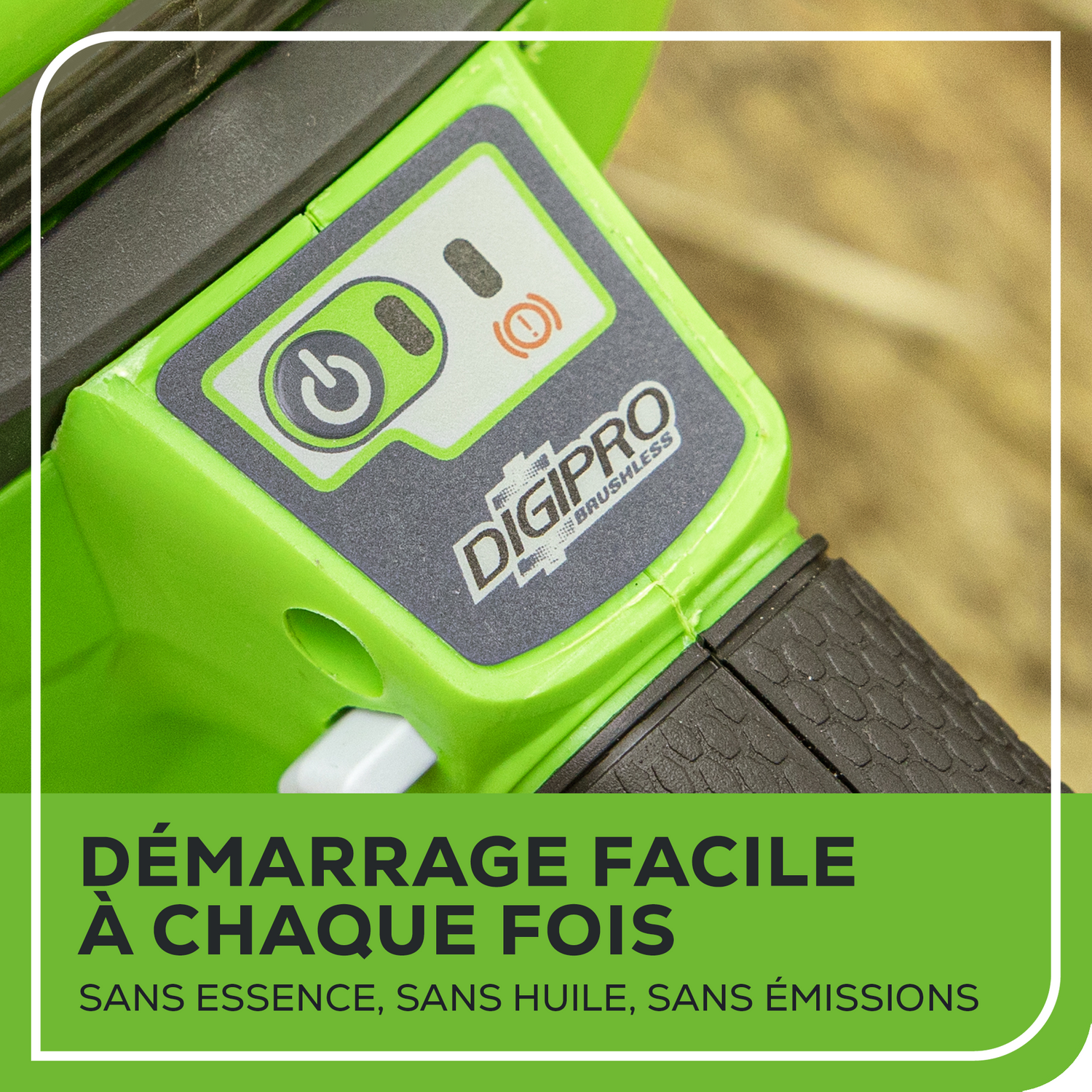

• Démarrage par bouton-poussoir - Pour un démarrage plus facile.
• Réduction des rebonds - Pour une coupe plus sûre.

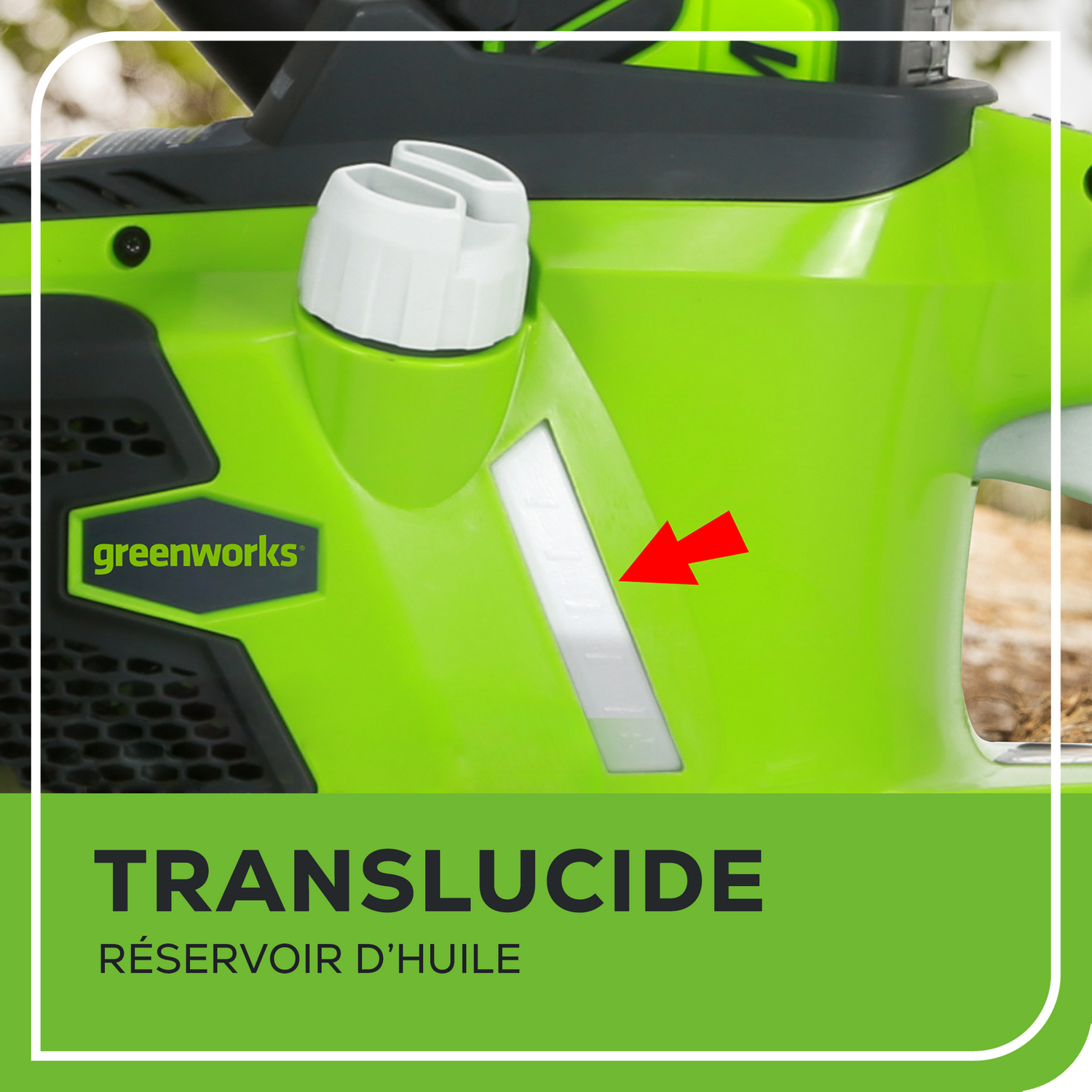

• Réservoir d'huile translucide. - Vue claire du niveau d'huile.

Compatible Avec:

14" Replacement Chainsaw Chain



C-Clip



Sprocket Kit



Sprocket Kit



Sprocket



Sprocket Kit



Sprocket

Caractéristiques:

Manuels

• 2000600- 40V 14-inch Chainsaw Manual

Comprend:

What oil do I use with my chainsaw?

Our units use a standard bar and chain oil. You can purchase this from your local hardware store; no specific brand name is required

Why is my chainsaw leaking oil?

All chainsaws will slowly “leak” oil in storage (mostly from it seeping off the chain). To prevent excessive leakage, store with as little oil left in the reservoir as possible, lay the chainsaw flat with a rag beneath it and the pole saw upright with the motor head at the top. During first use, operators should only fill the reservoir to roughly half full and check periodically to see if it needs to be refilled. Eventually, you will become accustomed to the amount of oil required for each job. This procedure will make it easier to store the unit as oil free as possible and reduce oil run off.

How large of a branch/log can I cut?

If you are looking to cut logs with one pass, the log needs to be about 2" smaller than the bar. However, there are many techniques to use a chainsaw for larger cuts.

What is the run time?

The run time of a chainsaw is measured in cuts per charge. The number of cuts per charge or “run time” that you receive would depend on the load acting on the saw (i.e., the thickness and type of wood being cut) as the chainsaw would use more battery power on tougher and thick objects being cut.

How do I know if my chain is tensioned enough?

Chains should be tensioned before use. Check intermittently throughout each chore to make sure the chain is kept properly tensioned. A correctly tensioned chain should only pull away from the bar enough to fit a dime between the teeth and the bar. ***DO NOT TENSION A CHAIN AFTER YOU HAVE FINSHED USING THE TOOL. HOT METAL EXPANDS. IF THE CHAIN NEEDS TENSIONED WHEN HOT, THEN ALLOW TO COOL, THE CONTRACTING METAL COULD POTENTIALLY DAMAGE THE CHAIN, THE BAR AND EVEN THE UNIT. WAIT UNTIL THE NEXT USE (OR AT LEAST UNTIL COOLED) BEFORE TENSIONING***

Can I use another brand of chain?

Yes, however, it must match the specifications of the original chain (gauge, pitch, and drive links). These specifications my be found inside of your owner’s manual.

What file size do I use to sharpen the chain?

Our chains may be sharpened using a 5/32” round file.

Why isn’t my chain cutting?

If the wood is burning/smoking, this indicates that the chain is on backwards. Another reason could be that the chain is dull and needs to be sharpened or replaced. Replace the chain if: • The length of the cutting edges is less than 5 mm. • There is too much space between the drive links and the rivets. • The cut speed is slow • Sharpening the chain many times but it does not increase the cutting speed.

Why does my chain keep falling off?

Chainsaw chains can come off due to multiple reasons such as worn-down bars, worn-down sprockets, and wrongly set chain tension. Please check the chain tension and condition of all parts prior to using. If anything is worn or damaged, replace parts before using again. Replace the bar if: • the groove is not fit with the height of the drive links (which must never touch the bottom). • the inside of the guide bar is worn and make the chain lean to one side.
